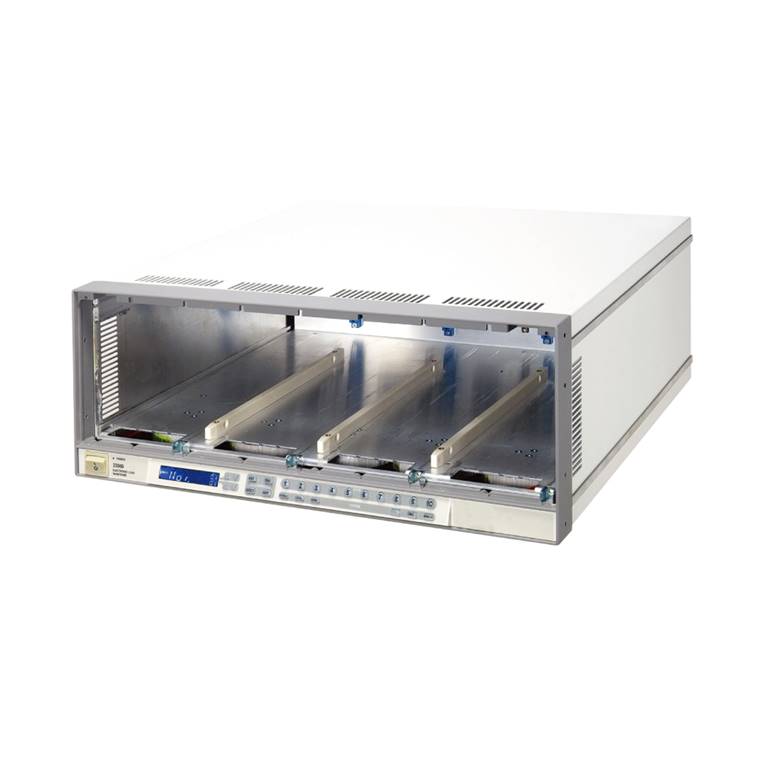

3300G Four Channel Mainframe



Description



l   3300G is a 4 Channels 1200W Mainframe which accepts up to four 3310G / 3310F series Load Module.

l   3300F is a 4 Channels 1200W Mainframe which accepts up to four 3310F series Load Module.

l   3300C is a 4 Channels 1200W Mainframe which accepts up to four 3310D / 3250A / 3330A series Load Module.

l   3301A is a 4 Channels 1200W Mainframe which accepts up to four 3320 series Load Module.

l   3305G is a 2 channels 600W Mainframe which accepts up to two 3310G / 3310F series Load Module.

l   3305F is a 2 channels 600W Mainframe which accepts up to two 3310F series Load Module.

l   3302G is 300W Mainframe which accepts any single 3310G / 3310F series Load Module.

l   3302F is 300W Mainframe which accepts any single 3310F series Load Module.

l   3302C is 300W Mainframe which accepts any single 3310D / 3320 / 3250A / 3330A series Load Module.

l   3300G and 3300F and 3300C include the built-in 150 states Store/Recall key or an Optional Remote controller provide user friendly one key operation for quick recall of previous stored data from all Load Modules. GPIB, RS-232, USB, LAN address is needed to control all Modules remotely.

Features


Accept 3310¢Õ Series DC Electronic Load Module

Accept 3310F Series DC Electronic Load Module

Flexible Load Module configuration

include 150 states Store / Recall Memory

External Recall key

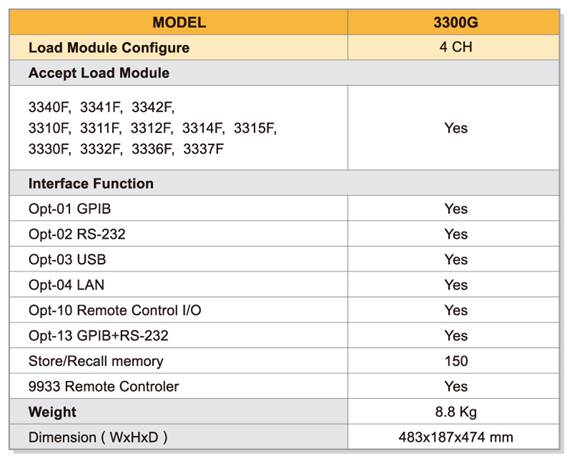

Specifications
